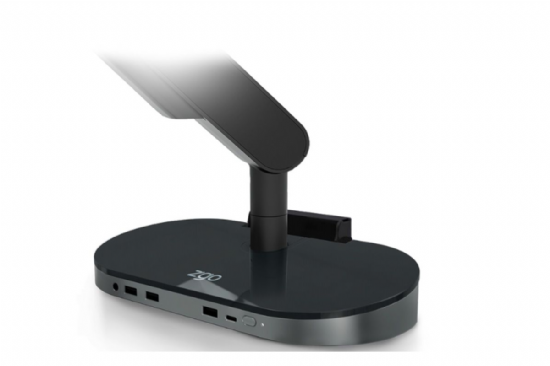

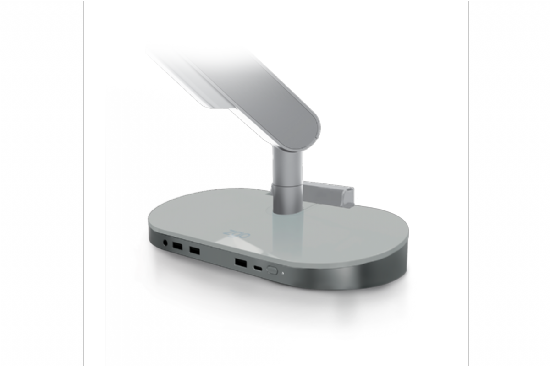

The ZDOCK intergrated Dual Video USB Docking Station eliminates desktop cable clutter and Increases usable workspace
The combination of a monitor arm, with full cable management, and a dock at its base, allows all cables to be routed through the arm to the rear of the dock where the video cables are connected and power drops behind the desk to outlets.
This eliminates virtually all cables from the desktop, which increases usable workspace the cleanliness, neatness and orderliness of the work environment.
Features
- Improved Workstation Aesthetics
Provides a cleaner, more streamlined appearance, which improves overall office aesthetics. Perfect for Work or Home Office Use.
- Saves Space and Better Port Accessibility
Offers convenient accessibility to required ports for charging and data while keeping devices out of the primary reach zone, where only immediate work should be performed.
- Easy and Flexible Installation
Unlike other Integrated Docks, Zdock installs over the base of the arm without the need to completely de-install the monitor arm.
- Backwards Compatible Dock
Zdock is a backwards compatible USB Docking Station that supports both USB-A and USB-C Notebooks with up to 100W of Power Delivery.
- Higher Performing Dock
Zdock offers 8 USB ports, high-speed (2.4A) Type-A charging port, Type-C (3.0A) charging port, Power Delivery up to 100 Watts.
- Work as a Stand Alone Unit
Zdock is available as a stand alone when there is no monitor arm application.
| USB Port (Upstream) |
Usb-C full feature with 100W PD charging Support PD2.0 version 1.2 |
| USB Port (Downstream) |
2x Usb-A 3.1 Gen1 (5V,0.9A max) |
| USB Charging ports (No Data) |
Usb-C (5V, 3.0A max) Usb-A (5V, 2.4A max) |
| Microphone/Headphone |
TRRS 3.5mm combo jack for Apple/Samsung type |
| Video output |
2 x DP++ (Dual mode DP1.2) Support: 5k - 5120x2880p60 (Only 1 video connection) 4k - 3840x2160p60, 4096x2160p60 2k - 2560x1600p60, 2560x1440p60 1k - 1920x1080p60 |
| Network |
Gigabit Ethernet Transfer rate 10Mbit/100Mbit/1Gbit |
| Back USB Port (Downstream) |
3x Usb-A 3.1Gen1 (5V, 0.9A) |
| Operating System |
Windows 7/7Pro (32bit/64bit), Windows 8.1/8.1Pro (32bit/64bit), Windows 10 (32bit/64bit), Apple OS X Version 10.8.3 and above (Mountain Lion v10.8, Mavericks v10.9, Yosemite v10.10, El Capitan v10.11(ver2.5), Sierra mac OS10.12(ver2.6) ) |
| Temperature |
Operating: 0°C to 40°C Non Operating: -20°C to 60°C |
| Relative Humidity |
Operating: 10% to 80% (non-condensing 5 to 35oC) Non Operating: 5% to 90% (non-condensing -20 to 60oC) |
| Altitude |
Operating: Sea level to 5000m Non Operating: 5000m |
| Compliance |
Designed to meet RoHS and WEEE directives |
| Weight |
2kg box packed |
| AC Power Adapter |
Input Voltage: 90 – 264V (47-63Hz) Output Voltage: 20V (+/- 5%), 7.5A, 150W Efficiency: Meets US DoE VI Mainscord: Mickey mouse(IEC60320-C5), 1.8m |
| Accessories |
1x USB-C full feature cable, 1.0m with USB-C to USB-A adapter |
| Warranty Periods |
3 Years |
